How Pneumatic Tube Systems Work
What Is a Pneumatic Tube System?
Pneumatic tube systems use air pressure, compressed air, and controlled pneumatics to move carriers containing items or documents through a network of tubes.
Pneumatic tube system at a large scale hospital
Utilizing a high-performance blowers, the system creates both positive pressure and vacuum, ensuring that the force applied is precisely regulated by advanced control systems.
Pneumatic tube systems are commonly used in hospitals (medical applications), banks, retail stores, logistics facilities, and manufacturing centers; where high speed logistics facilitate productivity.
Components of a Pneumatic Tube System
Carriers
Transparent, durable containers for items—various sizes with options for healthcare and medical applications. These carriers are designed for optimal performance depending on your facilities needs. RFID tracking, leak resistant, and auto loading and unloading options available.

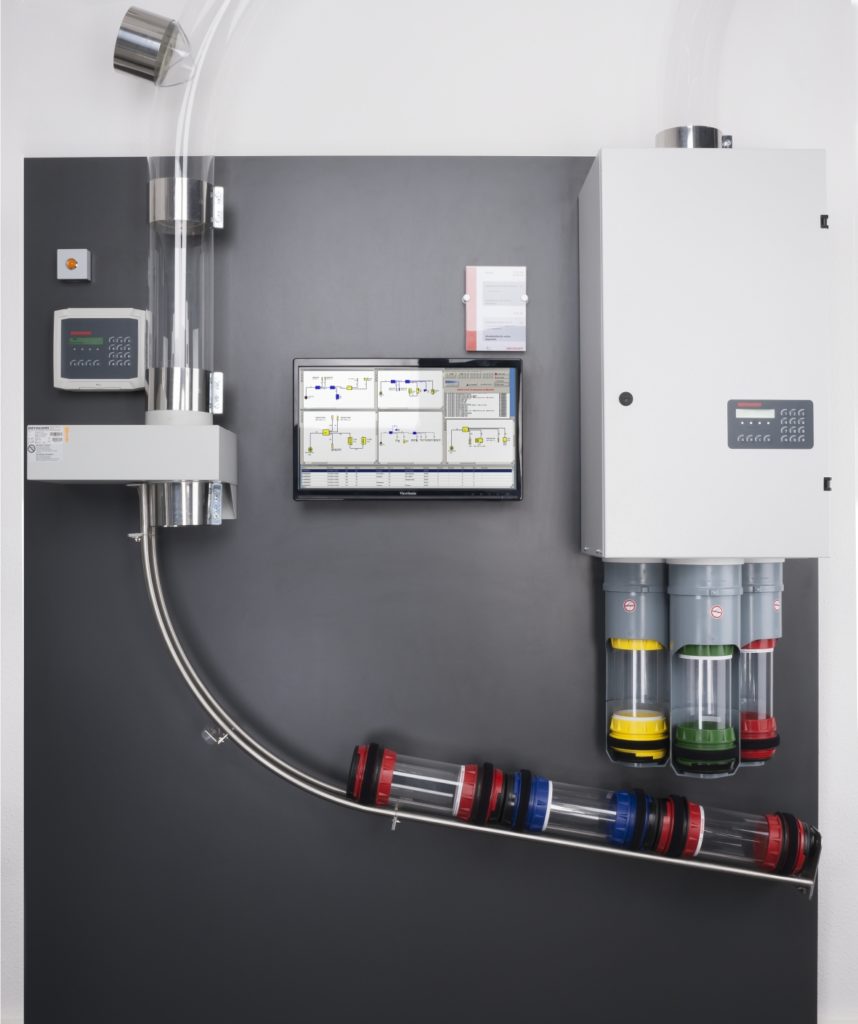

Stations
User-friendly send/receive ports equipped with digital control systems and automation interfaces that facilitate quick and easy operation.
Diverters
Mechanical intersections that route carriers to their proper routes ensuring safe and reliable redirection.
Blowers
Compact, modern vacuum pumps that draw or push air through the system. They create the necessary force and pressure that drive the carrier's motion and energy transfer, while integrated cylinders and valves help optimize the vacuum dynamics of the transport process.
How Does a Pneumatic Tube System Work?
Simple and User-Friendly Operation
Insert the item into the carrier. The insertion process considers safety standards to ensure the load is secure and balanced.
1.
Load the carrier into the sending station, where control systems confirm the proper air and gas pressures.
2.
Use the interface to select a destination with built-in automation and advanced control that monitors compressed air and vacuum dynamics.
3.
The blower activates. A powerful compressor generates the necessary compression, transferring precise energy to the carrier.
4.
Diverters route the carrier using actuators and finely tuned valves, ensuring that pneumatic force and pressure are applied appropriately.
5.
The carrier arrives at the destination, having benefited from controlled mechanical motion and dynamic force distribution.
6.
Animation of pneumatic tube system in use
The Aerocom Advantage
What Makes Atreo’s Systems Unique?
Pass-Through Station Design
Requires less piping leading to shorter distances traveled, higher throughput, and lower costs for the overall system.
RFID Tracking and Customization
Every carrier is tracked and assignable by use or department, ensuring adequate record-keeping and product security.
Compact & Quiet Operation
Blowers, diverters, and stations are smaller, quieter, and make use of vacuum pressure technology. This results in facilities receiving more usable space and reduced noise, with controlled pressure and safety features built into every component.
Conversions and System Upgrades
Easy, Non-Disruptive Conversions
Upgrading to Atreo is minimally invasive, as each conversion incorporates detailed planning and engineering to minmize construction and deconstruction costs.

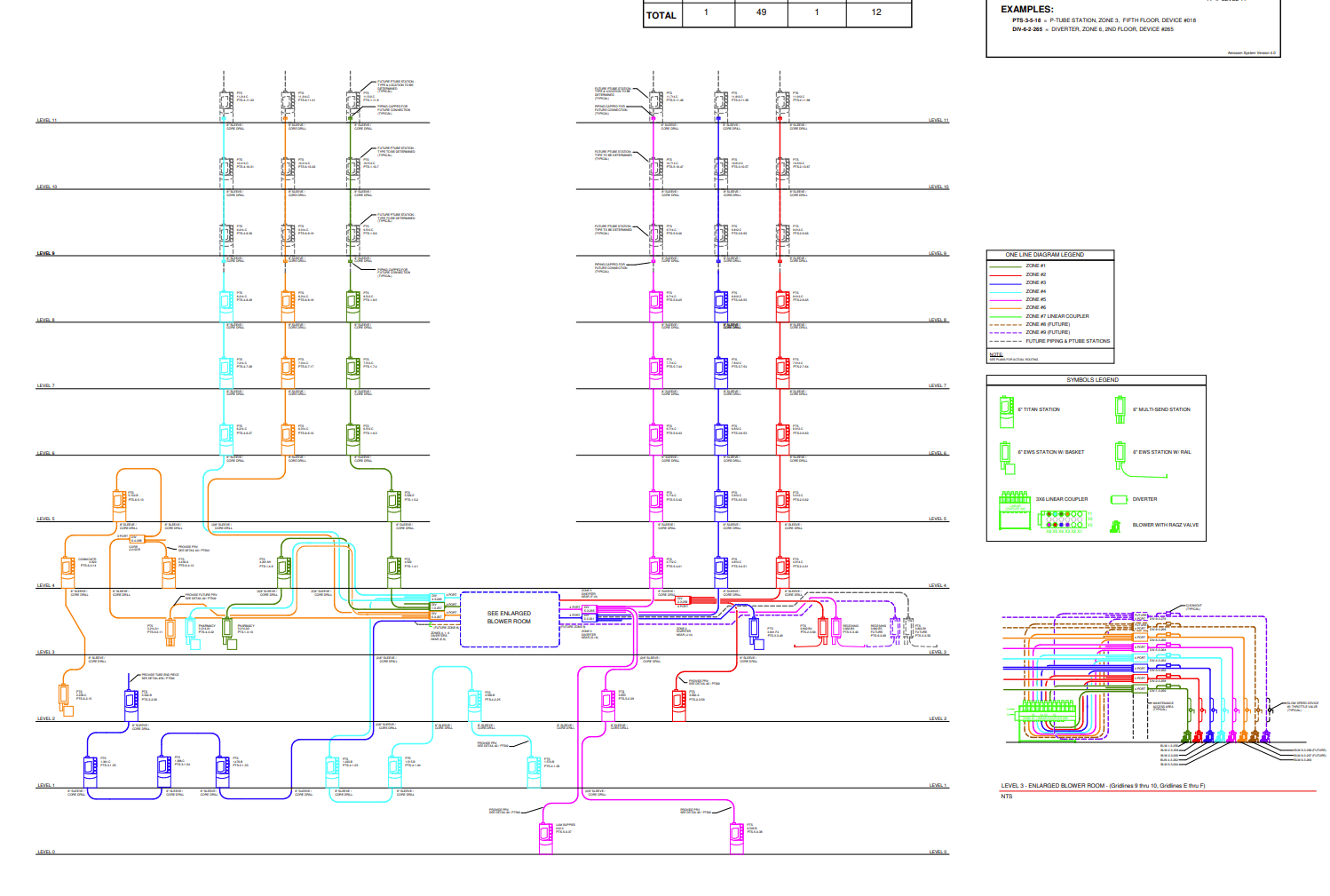

General schematic of pneumatic tube system; installation is scheduled to minimize operational disruption and ensure smooth energy transfer and mechanical motion throughout the various zones of a large scale pneumatic tube system.
Proven Savings and ROI
Does a Pneumatic Tube System Pay Off?
Labor Savings
Staff can focus on higher-value tasks with reduced manual handling due to automation and controlled pneumatic systems.
Faster Turnaround
Boost productivity with rapid energy transfer and efficient compressed air routing.
Typical Payback
6-24 months, reflecting the high performance, energy efficiency, and vacuum dynamics optimization.
Low Maintenance
& Energy Costs
Smart compressors, valves, and control systems minimize downtime while ensuring optimal force and power usage.
Applications Across Industries
Who Uses Pneumatic Tube Systems?
Safely move specimens, medications, documents, and waste using robust pneumatic control systems and high-pressure compressed air.
Secure cash and receipts with dynamic actuators and vacuum power components coordinating energy transfer.
Questions & Support
-
Yes — Aerocom is engineered for both new and retrofit installations, integrating well with existing pneumatic, control, and energy transfer components (such as compressors, valves, and cylinders).
-
Most installs/upgrades require minimal downtime by using advanced vacuum dynamics and controlled mechanical motion to ensure safe, efficient conversions.
-
Full lifecycle support is provided, including remote monitoring of compressed air systems, proactive maintenance using control systems and automation, as well as a comprehensive warranty and fast service—all ensuring continued safety and operational performance.
